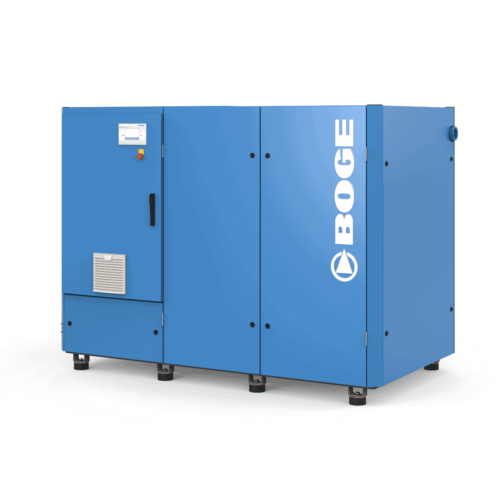

BOGE SLF Screw Compressor (Up to 90kW)

Cleveland Compressors stock the SLF Screw Air Compressor Series (Up To 90kW), designed for optimal performance in specific applications.

Enquire now

For specialised applications, the SLF Series offers a flexible compressed air system featuring direct drive and frequency control. These units automatically adjust air output to meet real-time pressure demands, delivering only the air you actually need. Count on Cleveland Compressors for this cutting-edge product, as well as customised consultations, maintenance, and servicing.

Download the S Series Datasheet PDF »

Advantages

Heat recovery can be integrated
High free air delivery
Directly coupled
Focus control 2.0
Frequency control

                                Self-contained cooler section with separate fan
                                Thanks to the carefully delineated cooling air path, the full fan output is effectively employed, enabling the realisation of 100% cooling efficiency. Additionally, this cooling functionality remains operational even when the system is exposed, underscoring its practical value during maintenance and testing operations.


                                Safety oil separator system
                                In collaboration with the impeccably crafted preseparator, a horizontal receiver proficiently segregates the air/oil blend. This process ensures that the oil is retained within the compressor circuit, allowing the purified air to flow to the end user.


                                Valveless oil circuit with multifunctional suction regulator
                                By minimising power consumption during periods of inactivity, energy conservation is prioritised. The comprehensively balanced startup process further contributes to the protection of the complete drive train. In the event of a fault, the control unit demonstrates its commitment to operational safety by executing an automatic shutdown.


                                Tried and tested design
                                Every intricate element, spanning from the accurately engineered cooling air direction to the efficient oil separation system with its horizontal receiver, and the space-conserving single-sided access, is the result of a continuous improvement journey. The premium quality has cemented the S-3's reputation as an exceedingly reliable and practical option for daily applications.


                                Isolated machine unit
                                Effectively isolating all mobile components ensures the effective reduction of structure-borne noise transmission, while the inclusion of a torsionally sturdy base frame further simplifies transportation using a forklift or stacker.


                                Valveless oil circuit with multifunctional suction regulator
                                Energy efficiency is maintained through low power consumption during idle periods, while a well-balanced start-up procedure preserves the integrity of the drive system. Furthermore, the control unit's automatic shutdown mechanism in response to faults contributes to elevated operational safety.


Delivery Volume (FAD) 42.4cfm - 346.1cfm
Delivery Pressure (7.5 bar) 110 psig
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (22kW) 30hp
Installed Motor Power (30kW) 40hp
Installed Motor Power (37kW) 50hp
Installed Motor Power (45kW) 60hp
Installed Motor Power (55kW) 75hp
