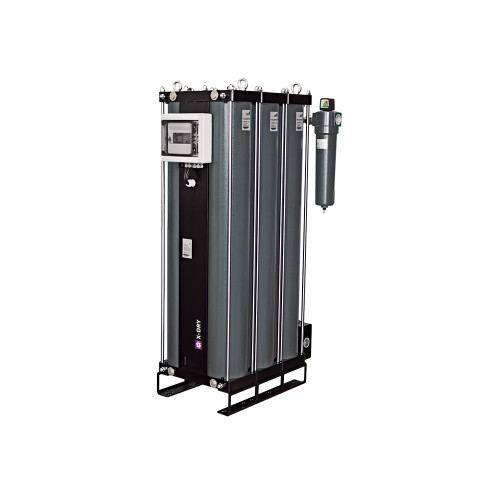

X-DRY series – Heatless Regeneration Modular Adsorption Compressed Air Dryer
X-DRY 300-1050 modular adsorption dryers are designed for continuous separation of water vapour from compressed air thus reducing dew point.Overview
Operation of dryer requires two columns operated alternately. Adsorption takes place under pressure in first column while second column regenerates with a portion of already dried compressed air at ambient pressure.
A dryer consists of two columns, filled with desiccant beads, controller with LCD display, valves, manometers, support construction and suitable filter housings with the required filter element. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.
Characteristics
| operating presure | 4 to 16 bar |
| operating temp. range | 1,5 to 50 °C |
| pressure dew points | -40 °C ( -25 °C / -70 °C) |
| flow rate | 300 to 1050 Nm³/h |
| standard colour | RAL 5012 |
| average compressed air consumption | 15-20% |
Applications
• compressed air systems
