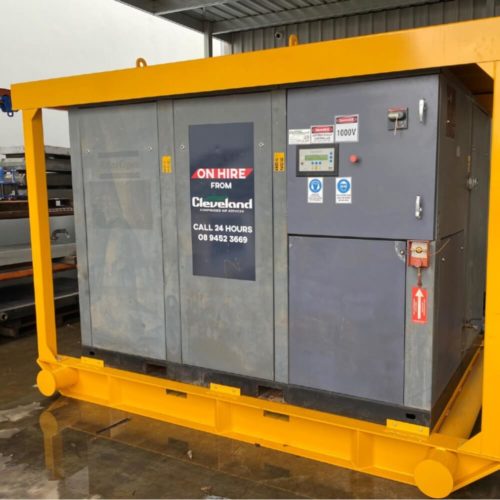

Atlas Copco GA160 Electric Air Compressor (1000v)

Name: Atlas Copco GA160 Electric Air Compressor (1000v)
Brand: Atlas Copco

Atlas Copco GA160 air compressors provide high-quality compressed air in the harshest environmental conditions. Incorporating the patented Atlas Copco’s oil-injected screw element, they provide a long and trouble-free life at the lowest possible operating cost.

Enquire now (08) 9452 3669

DOWNLOAD THE ATLAS COPCO GA160 ELECTRIC AIR COMPRESSOR PDF

Atlas Copco GA160 air compressors provide high-quality compressed air in the harshest environmental conditions.
Incorporating the patented Atlas Copco’s oil-injected screw element, they provide a long and trouble-free life at the lowest possible operating cost.
At their heart are state-of-the-art compression elements based on innovative asymmetric rotor profiles and powered by a high-efficiency electric motor.
Combined with a built-to-last drive system and heavy-duty inlet air filters, this results in maximum reliability to operate in the toughest conditions and at ambient temperatures up to 55°C/131°F.
The innovative design of the GA screw compressors reduces your energy bill and overall compressor lifecycle costs.
GA oil-injected compressors are pre-assembled packages: installation is fault-free, commissioning time is low and no external instrumentation air is required.


                                High efficiency
                                The Atlas Copco GA160 features state-of-the-art compression elements with smart Injection technology coupled with highly efficient oil-cooled IE4 and IE5 motor.


                                Air treatment integration
                                Full Feature GA compressors have an integrated dryer and oil-water separator to protect your compressed air network. The high-quality air extends the life of equipment, increasing efficiency and ensuring quality in your final product


                                Easy installation
                                The compact, integrated design of GA 5-500 compressors includes internal piping, coolers, motor, lubrication and control system – all supplied as a ready-to-use package. Installation is fault-free and commissioning time is low. Simply plug and run


                                Highest reliability
                                GA series is ISO 9001, ISO 14001 and ISO 1217 compliant. Long and trouble-free life at the lowest operating cost.


                                Integrated air system
                                GA WorkPlace Air System delivered ready for use. No need for a separate compressor room. Low-noise operation, compact size and integrated air treatment equipment. Integrated options significantly reduce pressure drops to save energy.


                                Reduced energy costs
                                Reduced lifecycle costs thanks to the use of a superior screw element and a high efficiency motor. VSD reduces energy costs by 35% on average.

Voltage 1000v
Gross Weight 3.361 kg
Length 2.6m
Width 2.0m
Height 2.0m
Engine 160 kW – 215 hp
Working Pressure 8.5 bar – 123 psi
Product Group Air compressors
Compressor Flow 28.8 m3/min
Compressor Output 28.8 m3/min – 1017 CFM – 480 litre/sec
Motor 160
Pressure 8.5
Movement Type Static
Compressor Type Screw compressors
Oil Oil injected
