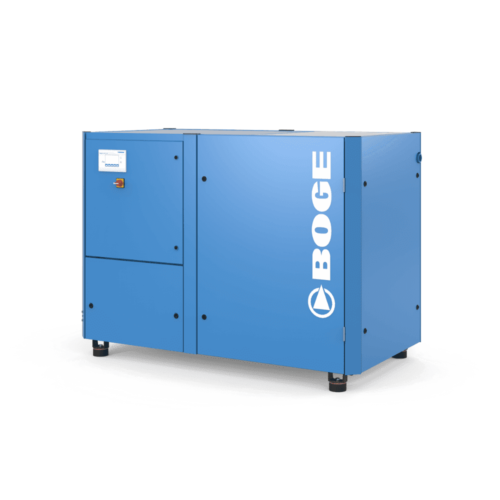

BOGE S Screw Compressor (Up to 75kW)

Screw compressor, oil lubricated. The new generation BOGE S Series manages to be even better than its predecessor: efficiency, smoothness and sound pressure levels are all significantly optimised.

Enquire now (08) 9452 3669

Ergonomic maintenance is invaluable. The fact that BOGE’s tried and tested S-3 series is considered indispensable throughout the industry is not least down to its intelligent design: the smart structure guarantees particularly easy, safe maintenance, and thanks to the high-quality components as well as fastidious workmanship, long service life and maximum efficiency are built-in.

BOGE	Max. Pressure	Effective Delivery Volume 50 Hz	Motor Power	Dimensions W × D × H	Weight
Type	bar / psig	m³/min cfm	kWhp	mm	kg
S 61-3	8 / 115	7.850 / 277.2	4560	1995 x 1065 x 1455	1180
S 61-3	10 / 150	6.820 / 240.8	4560	1995 x 1065 x 1455	1180
S 61-3	13 / 190	5.819 / 205.5	4560	1995 x 1065 x 1455	1180
S 75-3	8 / 115	9.780 / 345.4	5575	1995 x 1065 x 1455	1260
S 75-3	10 / 150	8.749 / 309.0	5575	1995 x 1065 x 1455	1260
S 75-3	13 / 190	7.323 / 258.5	5575	1995 x 1065 x 1455	1260
S 90-3	8 / 115	11.350 / 400.8	6590	1995 x 1065 x 1455	1328
S 90-3	10 / 150	9.930 / 350.7	6590	1995 x 1065 x 1455	1328
S 90-3	13 / 190	8.870 / 313.2	6590	1995 x 1065 x 1455	1328
S 100-3	8 / 115	12.290 / 434.0	75100	1995 x 1065 x 1455	1358
S 100-3	10 / 150	11.000 / 388.5	75100	1995 x 1065 x 1455	1358
S 100-3	13 / 190	9.530 / 336.5	75100	1995 x 1065 x 1455	1358


                                Integrated Heat Recovery
                                Much of the energy supplied to a compressor is converted to heat. BOGE Duotherm provides you with approx. 72 percent of this energy in the form of heat for further use – for heating and domestic water or process support. It quickly pays for itself! This system can also be very easily retrofitted at any time.


                                Maximum Efficiency
                                The design philosophy of the S-3 series skillfully combines utmost efficiency, maximum operating safety and distinct ease of maintenance: all of the functional areas are clearly laid out, safe and easy to reach, and all of the components are designed for a long life. There are various options available for even greater efficiency – from frequency control to heat recovery.


                                5 Year Warranty
                                BOGE’s bestcair programme gives you five years’ guaranteed protection for all replacement parts. This warranty is free for you and we will provide free replacements immediately for the entire period. Any maintenance required will be performed by certified BOGE service engineers – with original BOGE parts of course.


                                Focus Control 2.0
                                An intelligent control concept underlies the formidable growth in efficiency of this series. The modular Focus Control 2.0 is state-of-the-art, because it allows you to have simply everything under control – with the emphasis on “simply”: this higher-level control, which also serves as a network control for up to four compressors, makes compressed air generation more efficient and reliable.


                                Frequency Controlled Cooling Fan
                                Thanks to the defined cooling air duct, 100% of the fan output can be used. The cooling function even works when the system is open, which proves its worth during maintenance and test runs.


                                Maintenance-Friendly Design
                                The clear layout of the functional areas ensures ease of access for maintenance from one side via swing and removable doors.
