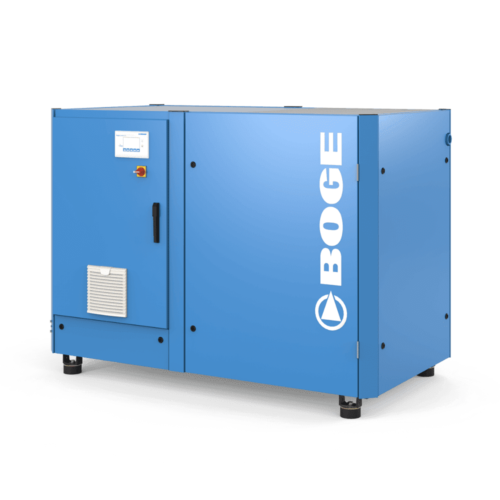

BOGE SF Screw Compressor (Up to 75kW)

Cleveland Compressors stocks the BOGE SF oil-lubricated Screw Compressor, available in models up to 75kW. This unit is equipped with frequency control.

Enquire now (08) 9452 3669

Cleveland Compressors is proud to stock the latest BOGE SF Series, which excels in efficiency, quiet operation, and smooth performance. The unit’s frequency control precisely tailors compressed air output to your real-time demand.

Download the S-3 Series Datasheet PDF »

Advantages

Heat recovery can be integrated
Focus control 2.0
Maximum efficiency
Frequency control
Frequency controlled cooling fan

                                Tried and tested design
                                Each aspect, whether it be the optimised cooling air circuit, the horizontal receiver for superior oil separation, or the space-efficient, one-sided access design, is the fruit of relentless fine-tuning. This has helped the S-3 gain a sterling reputation for both reliability and everyday suitability.


                                Isolated machine unit
                                By isolating all moving parts, the transmission of vibration-induced noise is effectively reduced. Additionally, the robust base frame simplifies the process of transportation using a forklift or stacker.


                                Multifunctional suction regulator
                                Designed for absolute air-tightness, the suction regulator effectively curbs the dispersion of oil vapours. This, in turn, facilitates a finely balanced start-up procedure that ensures the protection of the entire drive train and delivers substantial energy savings through exceptionally low power usage during periods of inactivity.


                                Efficiency – a question of quality
                                Crafted to the most exacting quality standards and cultivated through in-house expertise, the BOGE airend delivers consistently elevated free air output with remarkably minimal energy consumption. Paired with the refined oil separation mechanism, this synergy culminates in an exceptional efficiency output.


                                Maintenance-friendly design
                                A structured arrangement of functional sections guarantees uncomplicated maintenance access from a single side, facilitated through swing-out doors that can be readily detached.


                                Self-contained cooler section with separate fan
                                The cooling air duct's well-defined design enables the utilization of 100% of the fan's output, and this cooling capability remains operational even when the system is open, showcasing its value during maintenance and testing procedures.


Delivery Volume (FAD) 73.8cfm - 98.9cfm
Delivery Pressure (7.5 bar) 110 psig
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (75kW) 100hp
