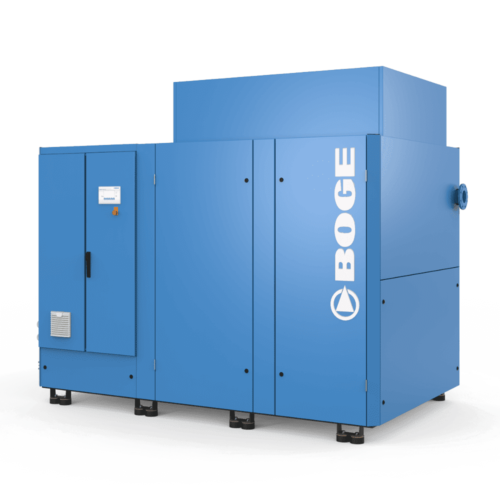

BOGE SLF Screw Compressor (Up to 200kW)

Cleveland Compressors stock the SLF Screw Air Compressor Series (Up To 200kW), designed for optimal performance in specific applications.

Enquire now (08) 9452 3669

Tailored for specific use-cases, the SLF Series provides a dynamic compressed air system with direct drive and frequency control. These machines calibrate air output based on immediate pressure requirements, ensuring efficient usage. Turn to Cleveland Compressors for this advanced solution, along with personalised advice, maintenance, and aftercare services.

Download the S Series Datasheet PDF »

Advantages

Heat recovery can be integrated
High free air delivery
Firectly coupled
Focus control 2.0
Frequency control

                                Self-contained cooler section with separate fan
                                The meticulously designed cooling air pathway enables the utilisation of the full fan output, ensuring that 100% of cooling capacity is harnessed. Furthermore, this cooling function remains operational even when the system is in an open configuration, demonstrating its practical value during maintenance and testing procedures.


                                Safety oil separator system
                                Leveraging the harmonious interplay of a thoughtfully engineered preseparator and a horizontally oriented receiver, the air/oil mixture is adeptly divided. As a result, the oil is contained within the compressor circuit, allowing the purified air to be channeled to the end user.


                                Valveless oil circuit with multifunctional suction regulator
                                Energy is conserved through minimal power consumption during idle periods, while the fully balanced startup procedure safeguards the entire drive train. Additionally, the control unit promptly initiates shutdown in case of a fault, exemplifying a high standard of operational safety.


                                Tried and tested design
                                Each aspect, ranging from the precisely calibrated airflow for cooling to the efficient oil separation system featuring a horizontal receiver, as well as the conveniently space-saving single-sided access, stands as a testament to ongoing refinement. The exceptional quality has solidified the S-3's standing as a dependable and well-suited solution for daily applications.


                                Isolated machine unit
                                Adeptly isolating all mobile components not only ensures the effective containment of structure-borne noise transmission but also leverages the advantage of a solid and torsion-resistant base frame, resulting in seamless transport facilitated by a forklift or stacker.


                                Valveless oil circuit with multifunctional suction regulator
                                Energy is saved through low power consumption during idle periods, the fully balanced start-up method safeguards the entire drive system, and in the event of a malfunction, the control unit promptly initiates an automatic shutdown for enhanced operational safety.


Delivery Volume (FAD) 42.4cfm - 1264.6cfm
Delivery Pressure (7.5 bar) 110 psig
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (22kW) 30hp
Installed Motor Power (30kW) 40hp
Installed Motor Power (37kW) 50hp
Installed Motor Power (45kW) 60hp
Installed Motor Power (55kW) 75hp
Installed Motor Power (132kW) 180hp
Installed Motor Power (160kW) 220hp
Installed Motor Power (200kW) 270hp
