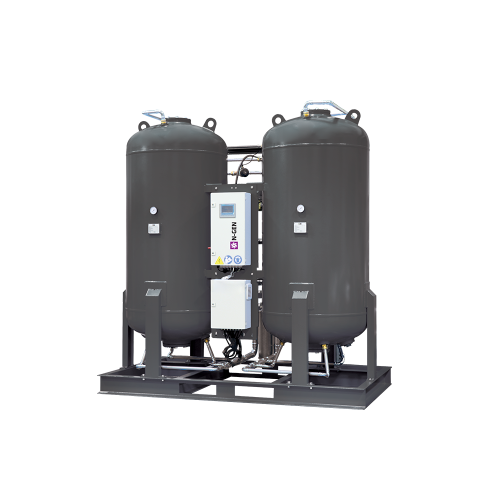

N-GEN Series PSA – Nitrogen Generator

During the PSA process compressed, cleaned ambient air is led to a molecular sieve bed, which allows the nitrogen to pass through as a product gas, but adsorbs other gases. The sieve releases the adsorbed gases to the atmosphere when the outlet valve is closed and the bed pressure returns to ambient pressure. Subsequently, the bed will be purged with nitrogen before fresh compressed air will enter for a new production cycle. In order to guarantee a constant product flow, N-GEN nitrogen generators use two molecular sieve beds, which alternatively switch between the adsorption and the regeneration phase. Industrial nitrogen gas can be also produced by separation of gaseous air using membrane technology or fractional distillation of liquid air using cryogenic technology. Decision on production method depends on required purity, volume and regime of consumption.

Characteristics

STANDARD EQUIPMENT
• Set of External Feed Air Filters
• Adsorber Vessels in Carbon Steel
• Long life Pneumatic and Solenoid Valves
• Internal Piping & Fittings zinc plated carbon steel
• Product Pressure Transmitters
• Nitrogen and Air flow Regulation
• Pressure Regulator
• Control System with SIEMENS PLC
• WebControl

OPTIONAL EQUIPMENT
