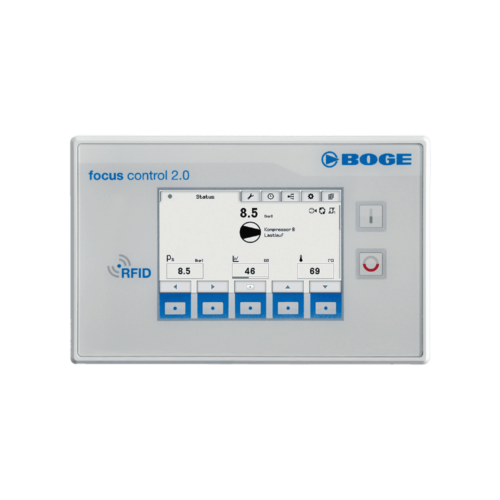

BOGE Focus Control 2.0 Machine Control System

DOWNLOAD THE BOGE FOCUS CONTROL 2.0 SYSTEM PDF

• Connect and manage up to four fixed and/or frequency-controlled air compressors with the BOGE focus control 2.0 machine control system.
• Everything is simple once connected: you authenticate yourself via the RFID-Chip and intuitively control the various functions. That’s how comfortable modern compressor control can be!
• You can switch between two main displays: the system-related display for an overview of all connected compressors (baseload change), and the compressor-related display for viewing individual compressors.
• The following values can be read on the display:
  • Status indicator
  • Network pressure
  • System pressure
  • The workload of frequency-controlled compressors
  • Load and idle operation
  • Final compression temperature
• More values can be accessed with just one click:
  • “Next service” indicator (maintenance hour meter)
  • Differential pressure of oil separator as a maintenance indicator
  • Indicator for dryer, frequency converter etc.
• Other interesting features of the BOGE focus control 2.0:
  • 4 configurable digital error inputs for freely allocating the downstream processing components: Adjust the control according to your needs!
  • Monitoring of motor winding temperature and automatic greasing of motor bearing (optional): Use this
    function to display the condition of your motor at any time.
  • Connecting an external mains pressure sensor: Retrieve mains pressure on the receiver.
