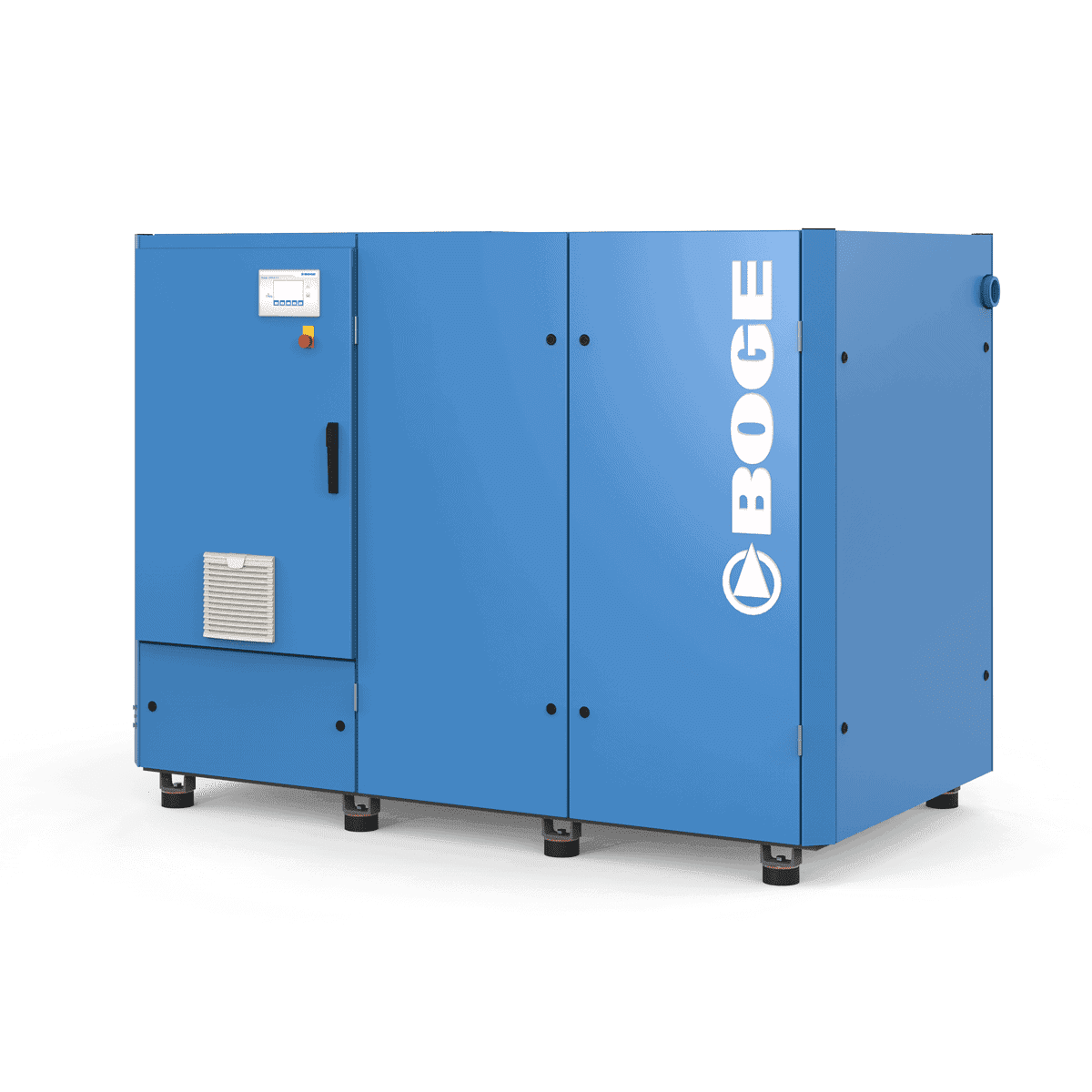

BOGE S-4 LF Screw Compressor (Up to 110kW)

Cleveland Compressors proudly offers the advanced BOGE S-4 LF series of screw compressors, available in new units ranging from 45kW to 110kW.

Enquire now (08) 9452 3669

These state-of-the-art compressors from BOGE don’t just feature a redesigned, innovative concept; they also set new standards in noise insulation, ease of maintenance, and energy efficiency. Experience unparalleled quiet operation, cutting-edge separation technology, effortless maintenance, and top-tier efficiency levels in this class when you choose the BOGE S-4 series compressors.

Download the S-4 Series Datasheet PDF »

Advantages

Effective isolation from vibrations
Low-maintenance airend with optimum efficiency
Maintenance-friendly design for easy access
The quietest compressors in their class

                                Efficient drive motor
                                For the sake of peak efficiency, we exclusively use highly efficient IE4 motors, which can optionally be equipped with an automatic, demand-driven relubrication device. In smaller, frequency-controlled models, we employ permanent magnet motors.


                                Effective intake filter
                                In all S-4 models, the intake air undergoes a pre-separation process followed by fine filtering to ensure optimal airend longevity and the most efficient air purification.


                                Sound‑optimised cooling air duct
                                The sizable, omni-directional cooling air channel effectively dampens the noise emitted by both the drive mechanism and the airend.


                                Low‑speed radial fan
                                The exceptionally silent, low-speed radial fan provides sufficient pressure reserve to accommodate a brief exhaust duct extension.


                                Elastic “SilentMount” isolation mounts
                                The drive motor, airend, and partially the oil separation tank are anchored to the base frame using flexible mounts, which serve to dampen vibrations and minimise noise levels.


                                Optimised airend
                                With their finely-tuned peripheral speed and cutting-edge rotor profile, BOGE airends achieve unparalleled efficiency, whether in direct drive configurations - with optional speed adjustment - or when paired with integrateDrive.


Delivery Volume (FAD) 84cfm - 759cfm
Delivery Pressure (7.5 bar) 109 psig
Delivery Pressure (10 bar) 145 psig
Delivery Pressure (13 bar) 189 psig
Installed Motor Power (45kW) 60hp
Installed Motor Power (55kW) 75hp
Installed Motor Power (75kW) 100hp
Installed Motor Power (90kW) 125hp
Installed Motor Power (110kW) 150hp
