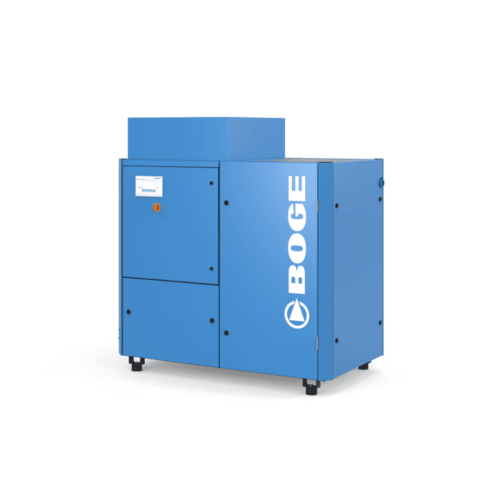

BOGE SD Screw Compressor (Up to 45kW)

We offer the BOGE SD Screw Compressor, available in capacities up to 45kW. This oil-lubricated model features an integrated dryer and frequency control.

Enquire now (08) 9452 3669

                                TRIED AND TESTED DESIGN
                                Every feature, ranging from the meticulously engineered cooling air flow and the efficient oil-separation via a horizontal receiver, to the convenient one-sided access, has been refined over time. This attention to detail has earned the S-3 a reputation for being exceptionally dependable and ideal for everyday operations.


                                ISOLATED MACHINE UNIT
                                Every moving element is insulated to curtail structure-borne noise effectively, and the inclusion of a rigid base frame streamlines its transportation, whether you're using a forklift or a stacker.


                                MULTIFUNCTIONAL SUCTION REGULATOR
                                With airtight precision, the suction regulator thwarts the escape of oil vapours, facilitating a harmonious start-up that safeguards the entirety of the drive train and significantly curtails energy expenditure due to minimal power consumption during periods of idleness.


EFFICIENCY – A QUESTION OF QUALITY

                                MAINTENANCE-FRIENDLY DESIGN
                                The organised arrangement of functional zones guarantees convenient accessibility for maintenance from a single side, facilitated through the use of swing-out and detachable doors.


                                SELF-CONTAINED COOLER SECTION WITH SEPARATE FAN
                                Through a meticulously planned cooling air duct, the entire fan output is effectively employed, and this cooling mechanism remains operational even when the system is exposed, underscoring its significance during maintenance and assessment phases.


Delivery Volume (FAD) 136.3 - 257.8 cfm
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (30kW) 40 hp
Installed Motor Power (37kW) 50 hp
Installed Motor Power (45kW) 60 hp
