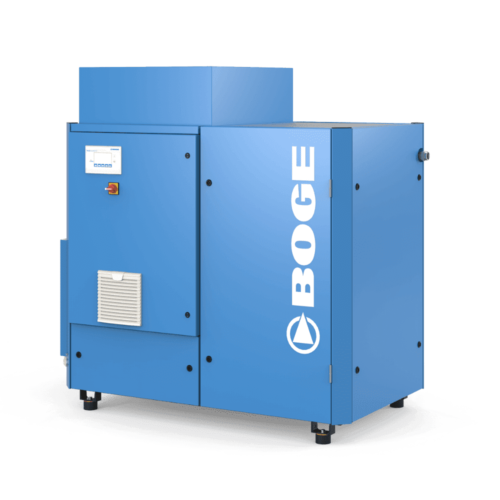

BOGE SDF Screw Compressor (Up to 45kW)

We offer the BOGE SDF Screw Compressor, available in capacities up to 45kW. This oil-lubricated model features an integrated dryer and frequency control.

Enquire now (08) 9452 3669

Cleveland Compressors is pleased to present the latest in the BOGE SDF Series, an upgrade over previous models with improvements in operational efficiency, noise levels, and smoothness. Featuring frequency control to tailor compressed air output to real-time demand, this unit also comes with an integrated dryer for consistent air quality.

Download the S-3 Series Datasheet PDF »

Advantages

Heat recovery can be integrated
Refrigerant dryer included
Extremely quiet
Focus control 2.0
Frequency control
Frequency controlled cooling fan

                                Tried and tested airend
                                Engineered in Germany, BOGE's airends utilise large, top-grade bearings and low rotational speeds as a guarantee for superior efficiency and lasting longevity.


                                Self-contained cooler section with separate fan
                                Owing to the precision-designed cooling air duct, the system capitalises on the full power of the fan. Notably, this cooling capability stays effective even when the system is open for maintenance or during test operations.


                                Internal steel pipework
                                While hose connections continue to be widely used, steel pipes stand out for their longevity, eliminating the need for regular replacements and effectively reducing the risk of leaks for years to come.


                                Safety oil separator system
                                The horizontal receiver, coupled with a precision-designed preseparator, adeptly isolates air from oil; the oil stays within the compressor system while the separated air is directed to the user.


                                Intake filter with paper micro filter insert
                                Preventing dust and dirt from infiltrating the compressor circuit enhances the longevity of both the airend and the filter element, thanks to the integrated preseparator.


                                Valveless oil circuit with multifunctional suction regulator
                                Energy is conserved through reduced power consumption when idle, the drive train is safeguarded by a balanced start-up, and automatic shutdown mechanisms kick in if a fault occurs, ensuring optimal operational safety.


Delivery Volume (FAD) 42cfm - 258.5cfm
Delivery Pressure (7.5 bar) 110 psig
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (45kW) 60hp
