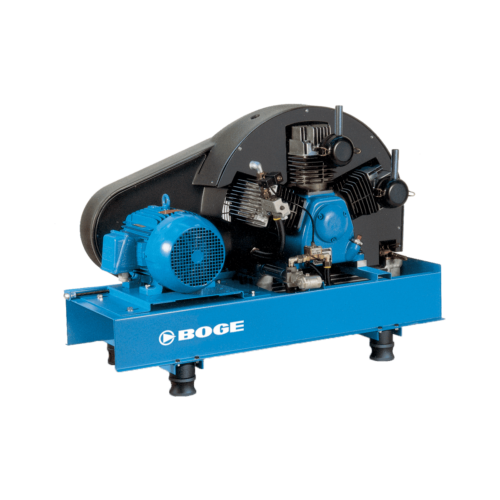

BOGE SRM Piston Compressor (Up to 15kW)

DOWNLOAD THE BOGE PISTON COMPRESSOR SRM UP TO 15 KW PDF

• The piston air compressors in this series deliver pressures of up to 15 bar safely and efficiently.
• The effectiveness of the BOGE Piston Compressor SRM up to 15 kW is proven and guarantees an absolutely reliable compressed air supply for applications that rely on high pressures.

FEATURES AND BENEFITS

• Oil-lubricated piston compressor, medium pressure.
• Designed for 100% duty cycle
• High pressures
• Effective free air delivery: 185 – 1913 l/min, 6.5 – 68 cfm
• Maximum pressure: 10 – 35 bar, 150 – 515 psig
• Rated power: 1.5 – 15 kW, 2 – 20 HP

RELIABILITY

• BOGE piston compressors work according to a proven principle that is characterised by reliability, efficiency and robustness.
• Designed for long-term performance, the BOGE Piston Compressor SRM up to 15 kW ensures maximum operating reliability even in the most arduous conditions.

HIGH QUALITY

• Quality pays off: Since only top-quality components are used in the manufacture of BOGE Piston Compressor SRM up to 15 kW you will benefit from long service life and low maintenance costs – advantages you will enjoy indefinitely.

BASE AND PEAK LOAD OPERATION

• The BOGE Piston Compressor SRM up to 15 kW can be used intermittently as base or peak load compressors, thus optimising compressed air supply with maximum efficiency.

FLEXIBILITY

• The modular design concept allows you to individually choose the type of compressor and the size of the receiver you require to meet your operating requirements.
