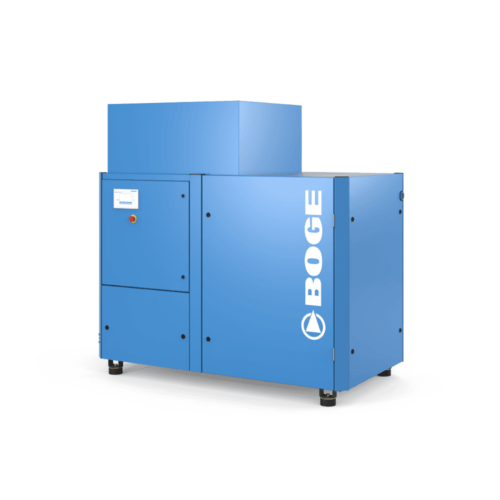

BOGE SD Screw Compressor (Up to 75kW)

BOGE SD Screw Compressor (Up To 75kW) | Cleveland Compressors

Optimised like always for efficiency, quiet operation and sound pressure levels – the new generation of BOGE SD Series. The integrated dryer ensures constant air quality.

Download the S-3 Series Datasheet PDF »

Advantages

Heat recovery can be integrated
Refrigerant dryer included
Focus control 2.0
Frequency controlled cooling fan

                                TRIED AND TESTED AIREND
                                Crafted in Germany, BOGE airends come equipped with large, premium-quality bearings and operate at low speeds, ensuring both high efficiency and extended durability.


                                SELF-CONTAINED COOLER SECTION WITH SEPARATE FAN
                                The cooling air duct is so well-designed that it allows the fan to operate at 100% efficiency. This feature continues to be effective even when the system is opened up for maintenance or test runs, showcasing its value.


                                INTERNAL STEEL PIPEWORK
                                In contrast to traditional hose connections, which often require frequent replacement, steel pipes offer long-lasting durability and are highly effective in preventing leaks over extended periods.


                                SAFETY OIL SEPARATOR SYSTEM
                                With the aid of a meticulously designed preseparator, the horizontal receiver proficiently sifts the oil from the air; the oil is circulated back into the compressor system, while the clean air is channeled to the user.


                                INTAKE FILTER WITH PAPER MICRO FILTER INSERT
                                The exclusion of dust and dirt from entering the compressor circuit not only extends the lifespan of the airend but also, courtesy of the built-in preseparator, prolongs the durability of the filter element.


                                VALVELESS OIL CIRCUIT WITH MULTIFUNCTIONAL SUCTION REGULATOR
                                Operating with minimal power usage during idle times, featuring a balanced start-up that preserves the integrity of the drive train, and equipped with a control unit that self-terminates in case of a malfunction - this is what we call secure operation!


Delivery Volume (FAD) 205.5 - 434 cfm
Delivery Pressure (8 bar) 115 psig
Delivery Pressure (10 bar) 150 psig
Delivery Pressure (13 bar) 190 psig
Installed Motor Power (45kW) 60 hp
Installed Motor Power (55kW) 75 hp
Installed Motor Power (65kW) 90 hp
Installed Motor Power (75kW) 100 hp

Speak to us today

We believe that your success is our success. That is why we provide top-notch solutions and support to businesses using our quality products, whether through purchase or hire.

Enquire now (08) 9452 3669
